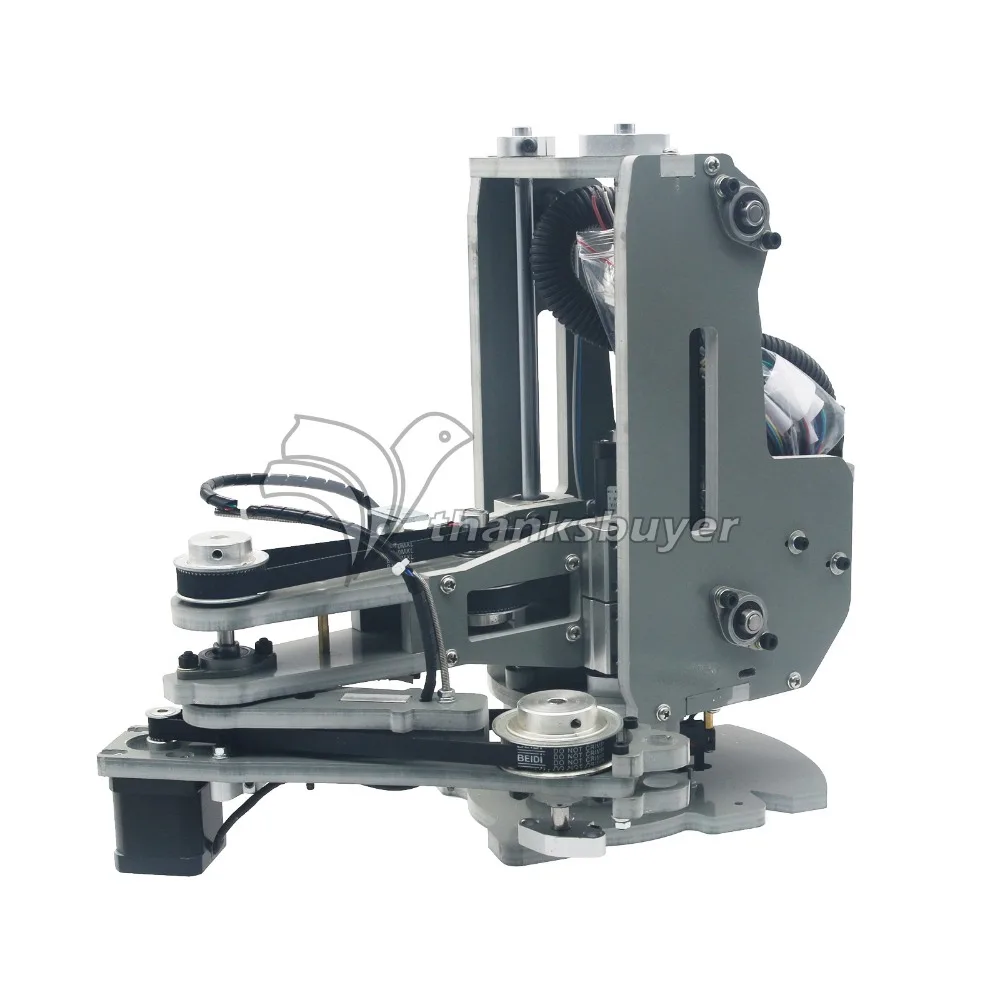

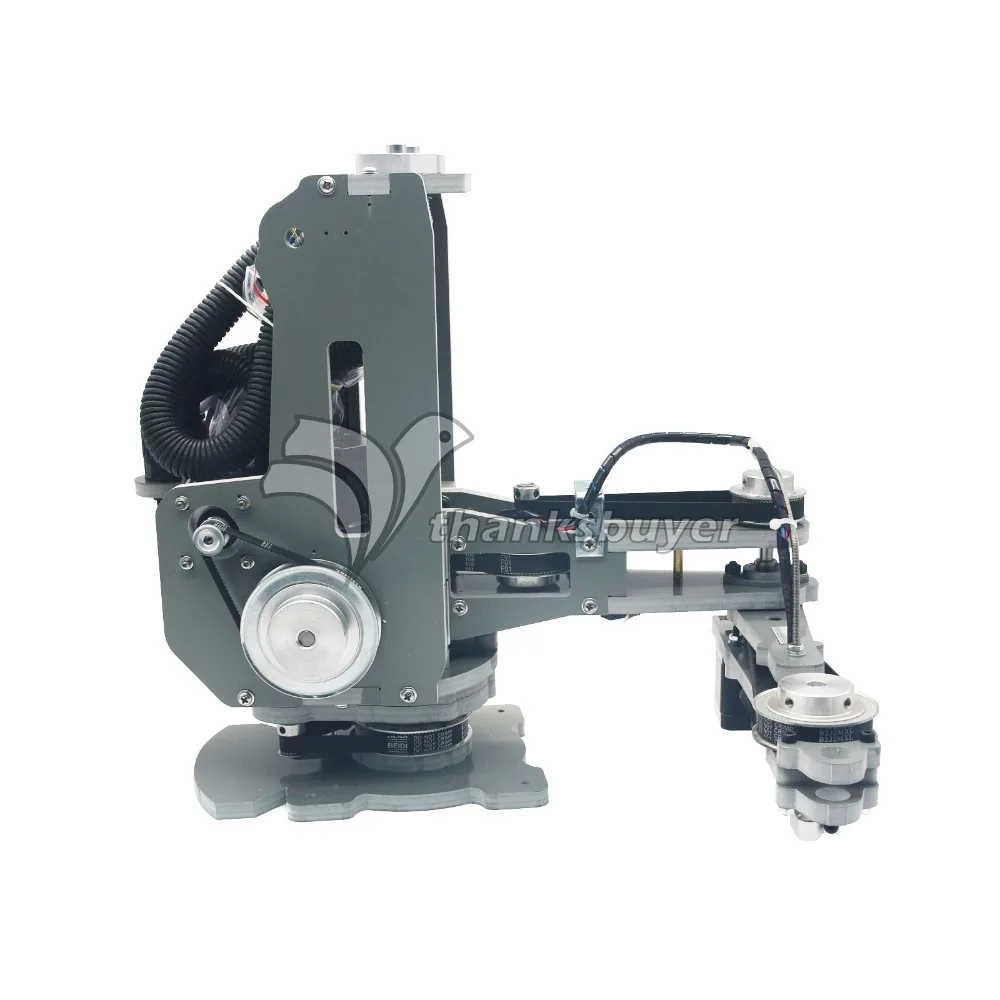

SCARA Robot Mechanical Arm Hand Manipulator 4 Axis Stepper Motor Assembled
 aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()
aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()Specifications:

- Already assembled.
- Power: 42 stepper motor for 4 axis
- The end Loading: 2kg

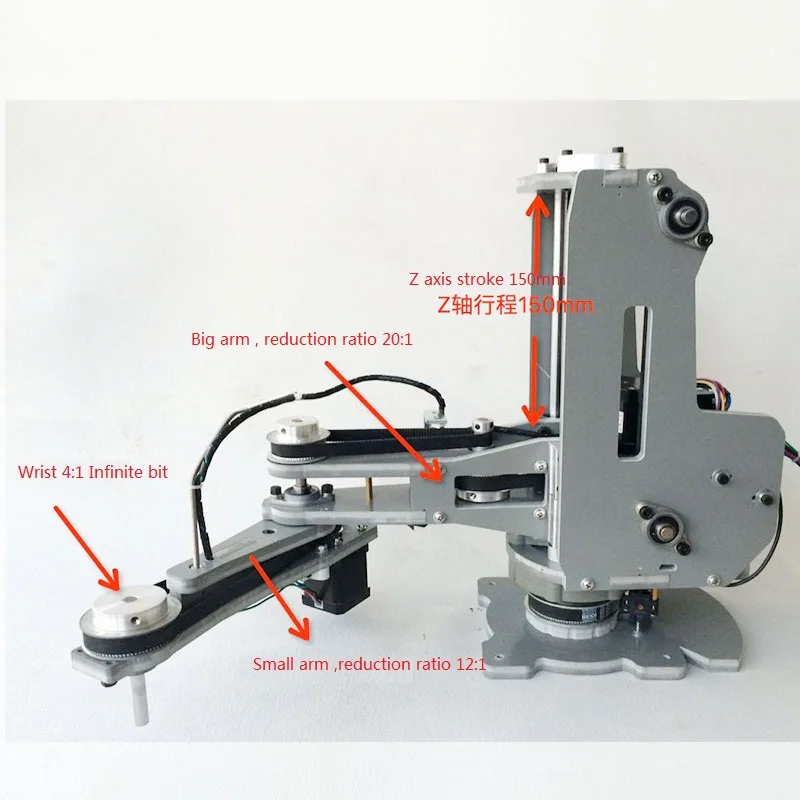

- Big arm rotation: 360 degree
- Small arm rotation: 0-290 degree
- Wrist rotation: 360 degree +
- Big arm length: 200mm
- Small arm  length: 150mm
- Wrist  length: 0-150mm
- Material: PVC plastic
- Weight: 7.5kg
- Size: 500*180*350mm L*W*H
- PhotoElectric Switch Sensor for Wrist: PM-K44

42 step motor parameters:
- Model: 42BYGH47-401A two hybrid stepping motor
- Maximum drive current: 1.5A
- Drive voltage: 24V
- Lead number: 4
- Step angle: 1.8 degrees
- Surface temperature: 80 MAX (rated current)
- Maximum static torque: 0.55N.M
- Phase resistance: 1.6

Note: Only Mechanical Arm frame and stepper motors, not include control system.

Package Contents:
- 1 x Robot Mechanical Arm frame with stepper motors



aeProduct.getSubject()
